Seamless Honed Tubes Manufacturer
Seamless Honed Tubes 1020 1045 1026 ST52 for Hydraulic Cylinders Manufacturer in China

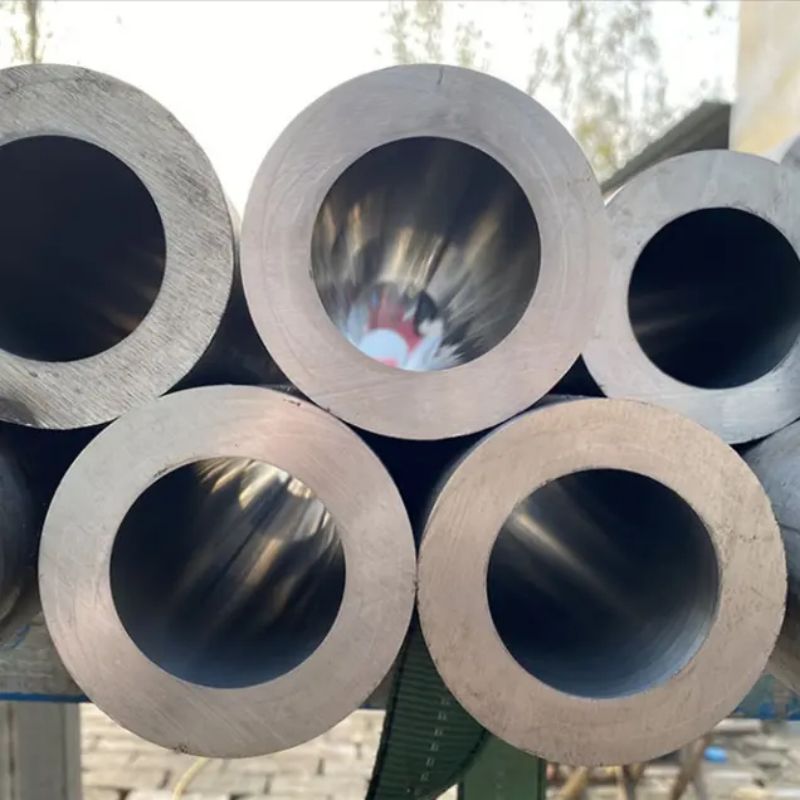

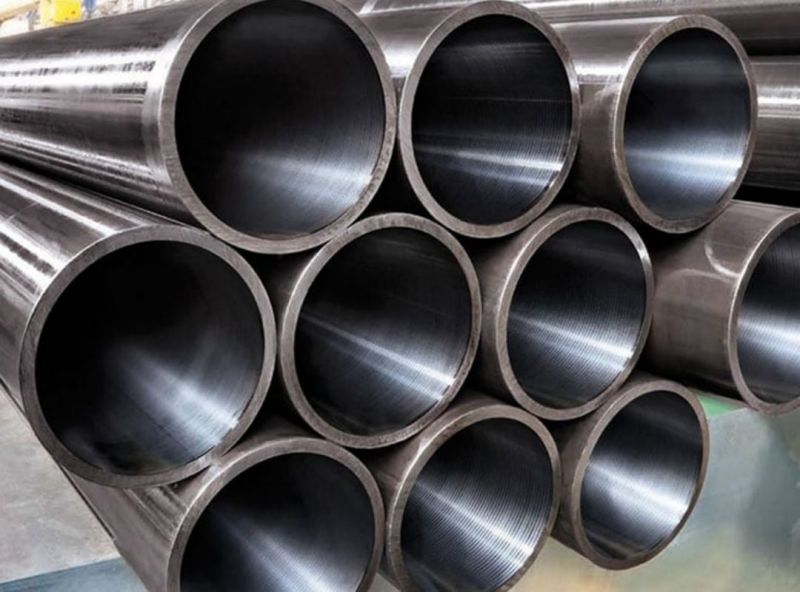

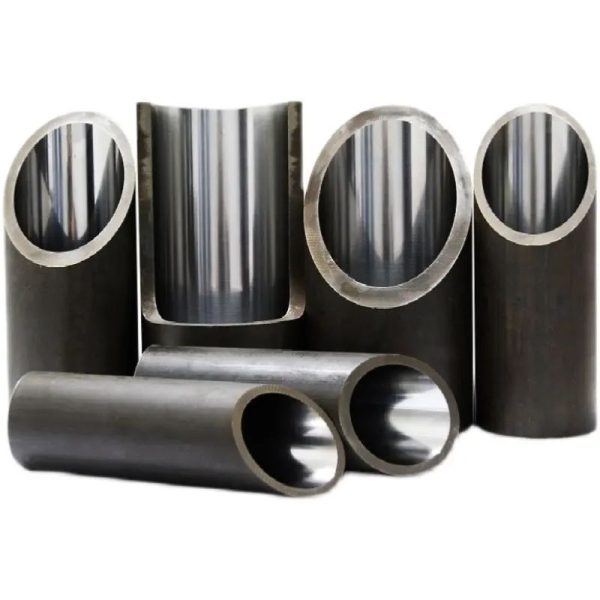

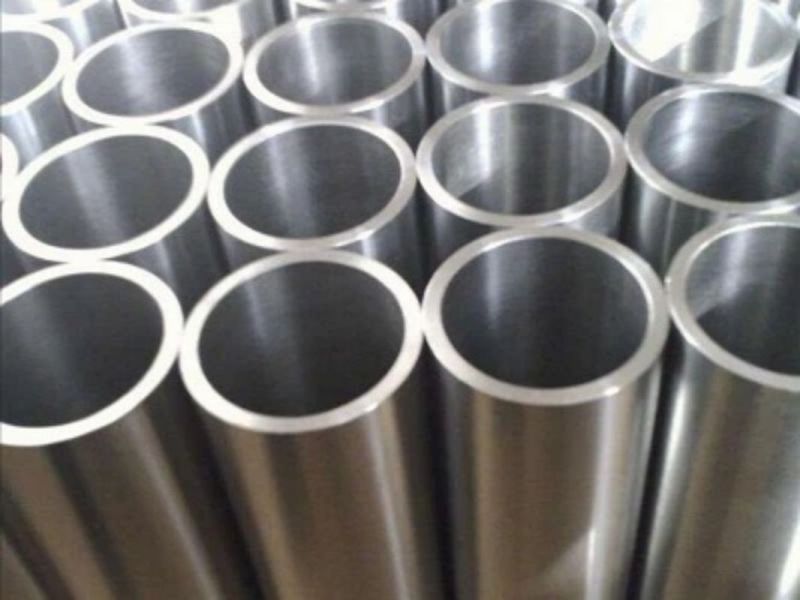

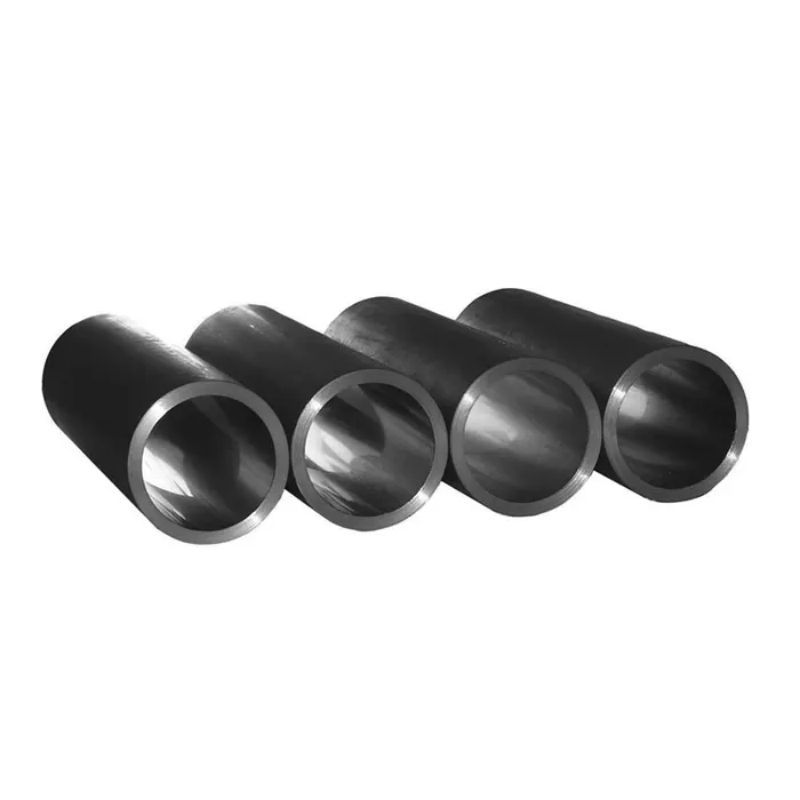

Seamless honed tubes are well known as hydraulic cylinder tube in many industries. This is because honed tube is ready to use for hydraulic cylinder applications without further ID processing. This product is the most important materials for manufacturing hydraulic cylinders. And as this kind of tubing is usually honed in tube inside diameter, it is known as honed ID tubing also.
♣ Advantages of Seamless Honed tubes:
1) High precision tolerances
Our honed tube can meet ID tolerance H7, H8, H9, … etc according to the customer’ requirements
2)High pressure resistance
We only use seamless cold drawn tubes to produce honed pipes, which means our honed tubing can work under higher pressure, thus our honed pipes are more reliable for hydraulic cylinder applications.
3) High Smooth inside surface
The roughness of our honed pipe is Max Ra 0.4 microns ID finish (16Max Ra ID Finish).
4) Good weldability
The weldability of our honed steel tubing is very good, this is quite helpful for manufacturing the cylinders.
♣ Quality Standards
Seamless Honed Tubes (Steel) with a micro-finish and highly accurate in bore size within tolerance H7 or equivalent.
DIN 2391 Seamless Precison Steel Tubes
EN10305 Steel Tubes for Precision Applications Seamless Cold Drawn Tubes
ASTM A519 Standard Specification for Seamless Carbon and Alloy Steel Mechanical Tubing
JIS G3445 Carbon Steel Tubes for Machine Structural Purposes
♣ DETAIL INFORMATION
| Steel Grade | SAE1020, SAE1026, SAE1045,ST52,4140,20MnV6 | |||||
| Outer Diameter | 28-325 mm | |||||
| Inner Diameter | 18-275 mm | |||||
| Length | 3-7 m | |||||
| Delivery Condition | NBK BKS | |||||
| Package | As per customers’ request | |||||
♣ PRODUCT CATALOG (Download)
Product Catalog-Steel tube (PDF)
