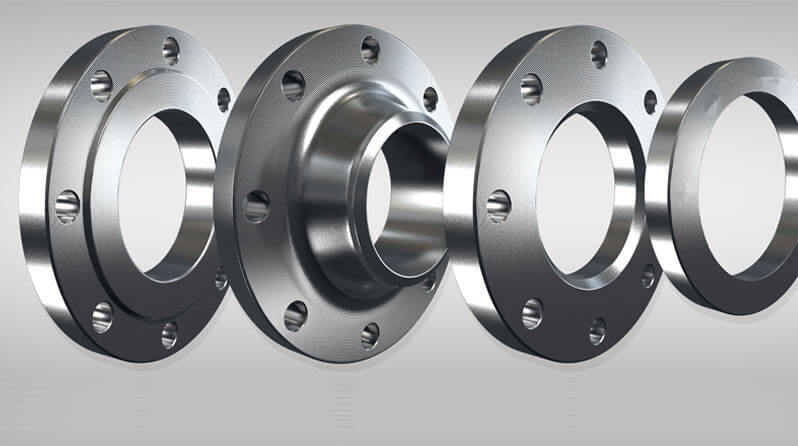

The top 8 Stainless Steel Flanges Used in Stainless Steel Pipes are as Follows
Flanges with Weld Necks
These flanges are easily identified by their protruding necks. Weld neck flanges will match the pipe’s diameter and bevel, and are designed to withstand extreme pressures and temperatures.
Blind Flanges
In piping systems or vessels that require periodic inspection, these flanges are ideal for sealing vessel openings or pipe systems without a bore. Hub-less or hub-less blind flanges can be used. As a result of internal pressure, the flange can readily withstand considerable tension.
Slip-On Flanges
These Stainless Steel 310 Flanges are welded to a location, and they are perfect for low-pressure applications since they are larger in diameter than the pipe. They can be slid over the pipe easily since they are welded to a location.
Socket Weld Flanges
The chemical processing sector uses these flanges because they are manufactured for high-pressure pipes with small diameters. Internally welded socket weld flanges contribute to the strength of their fatigue resistance.
Threaded Flanges
Several applications are capable of being addressed with these flanges, and they can be assembled without the need for welding. Externally threaded pipes are suited to stainless steel threaded flanges, and these flanges should not be used under excessive pressure or temperatures.
Lap Joint Flanges
Flanges made from low alloy steel or carbon steel can be used with stub end fittings, and are a type of slip-on flange. They are perfect to install on piping systems that need to be inspected and maintained regularly, such as low alloy steel or carbon steel pipes.
Orifice Flanges
These steel flanges are used to gain access to a line for metering liquids or gases. Orifice plates or flow nozzles are inserted in the orifice flanges.
Ring Type Joint Flanges
Flanges with a ring-type joint are utilized in high-pressure and high-temperature applications. On blind, slip-on, or weld neck flanges, the ring-type joint flanges have a groove that can be readily squeezed. The flanges aid in the prevention of leaks in pipelines that transport media at high pressures and temperatures.
